Switchcraft TARA6MX 6-Pin Male Right Angle Tini-QG Series Mini XLR Connector

Original price was: $12.08.Current price is: $8.46.

SKU: BWFYA 53540445 Categories: Audio Connectors, XLR Connectors

Experience the difference quality makes.
Top Quality Products
Service with a smile, always online.
fast shipping

Description
Reviews (0)

TARA6MX – Overview

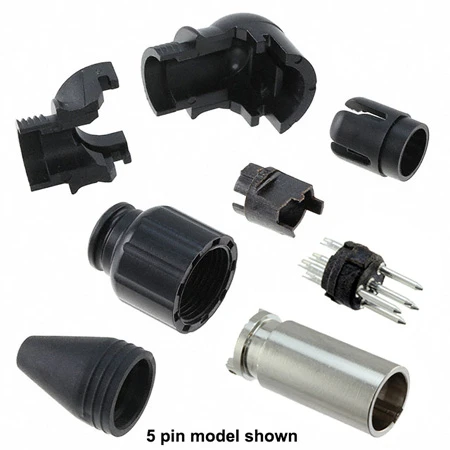

Switchcraft’s right angle Tini-QG series mini XLR connectors are made from high-quality thermoplastic and nickel plated brass. They are available with male or female contacts and are easy to assemble with chuck-style strain relief. Key features include high-quality flex relief for maximum durability, silver or gold-plated BeCu contacts to ensure excellent connectivity as well as a rotatable handle for achieving desired angle during installation.

Features:
- Mates with TA Series, TB Series, TRA, and TY series Mini XLRs
- Right angle design eliminates strain on cable
- Fits cables up to 0.15” [3.8mm]
- Larger flex relief available for cables up to 0.210” [5.3mm]
- Gold plated contacts and other special options available from factory
Specifications:
- Wire Gauge: 20, 22, or 24 AWG
- Current Rating: 4A for 3, 4, and 5 pin; 1.5A for 6 pin
- Contact Resistance: 0.015 ohms
- Insulation Resistance: >10,000 MΩ @500VDC
- Dielectric: 500 VAC
- Operating Temperature: -55°C to +85°C
- Life: 5,000 Insertion/Withdrawal Cycles
- Insertion Force: 6.1 lbs Max
- Withdrawal Force: 5.6 lbs Min
- Vibration: per Mil-Std 202G, Method 102A
