TA5MBX – Overview

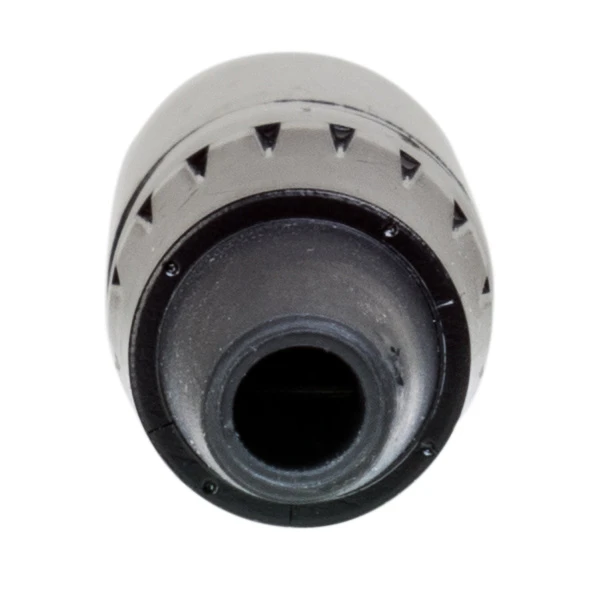

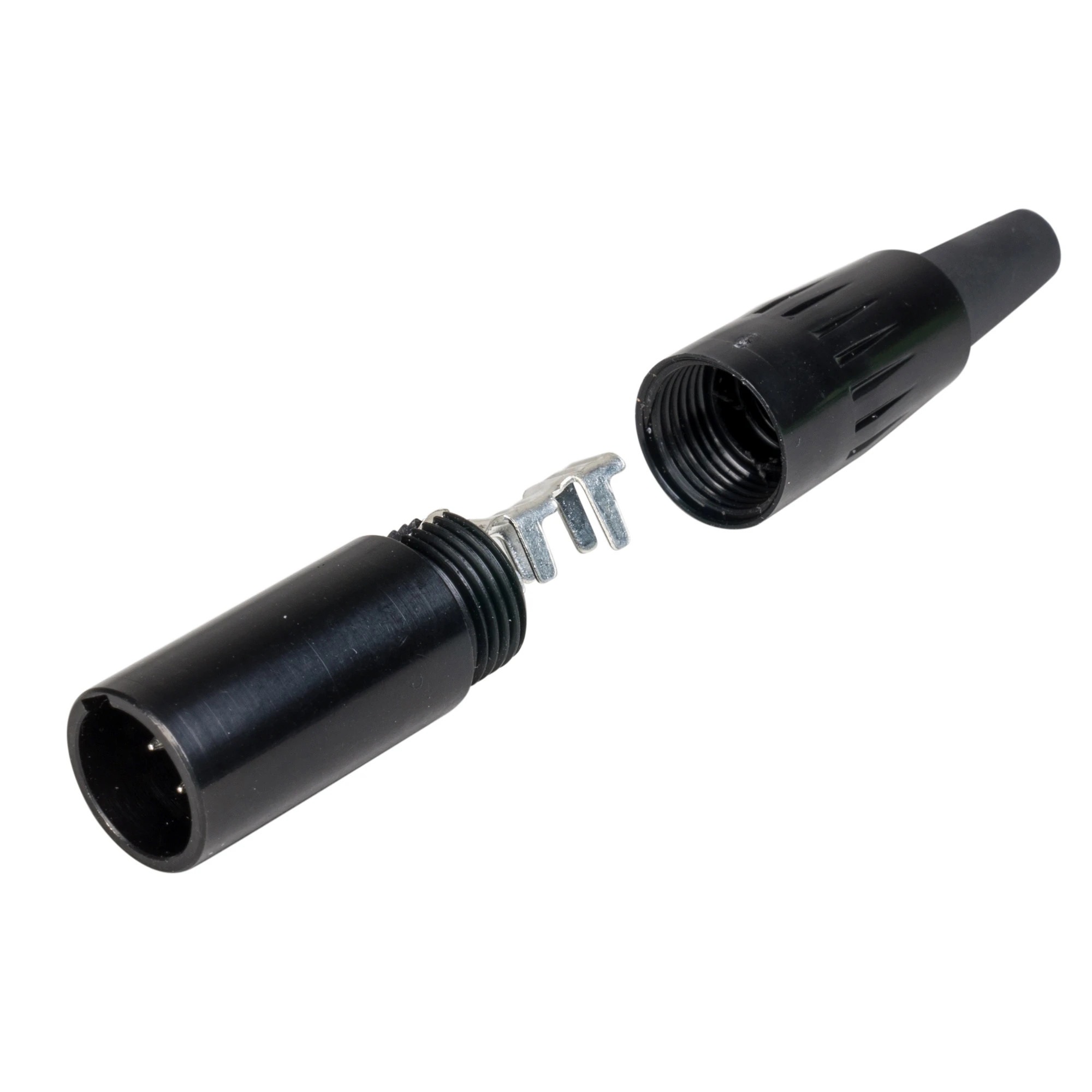

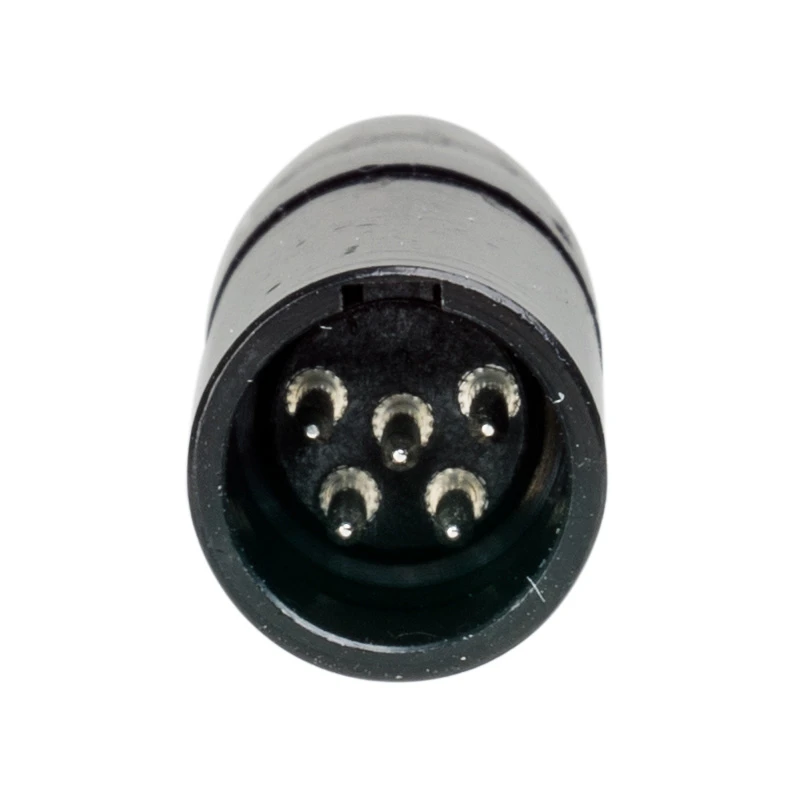

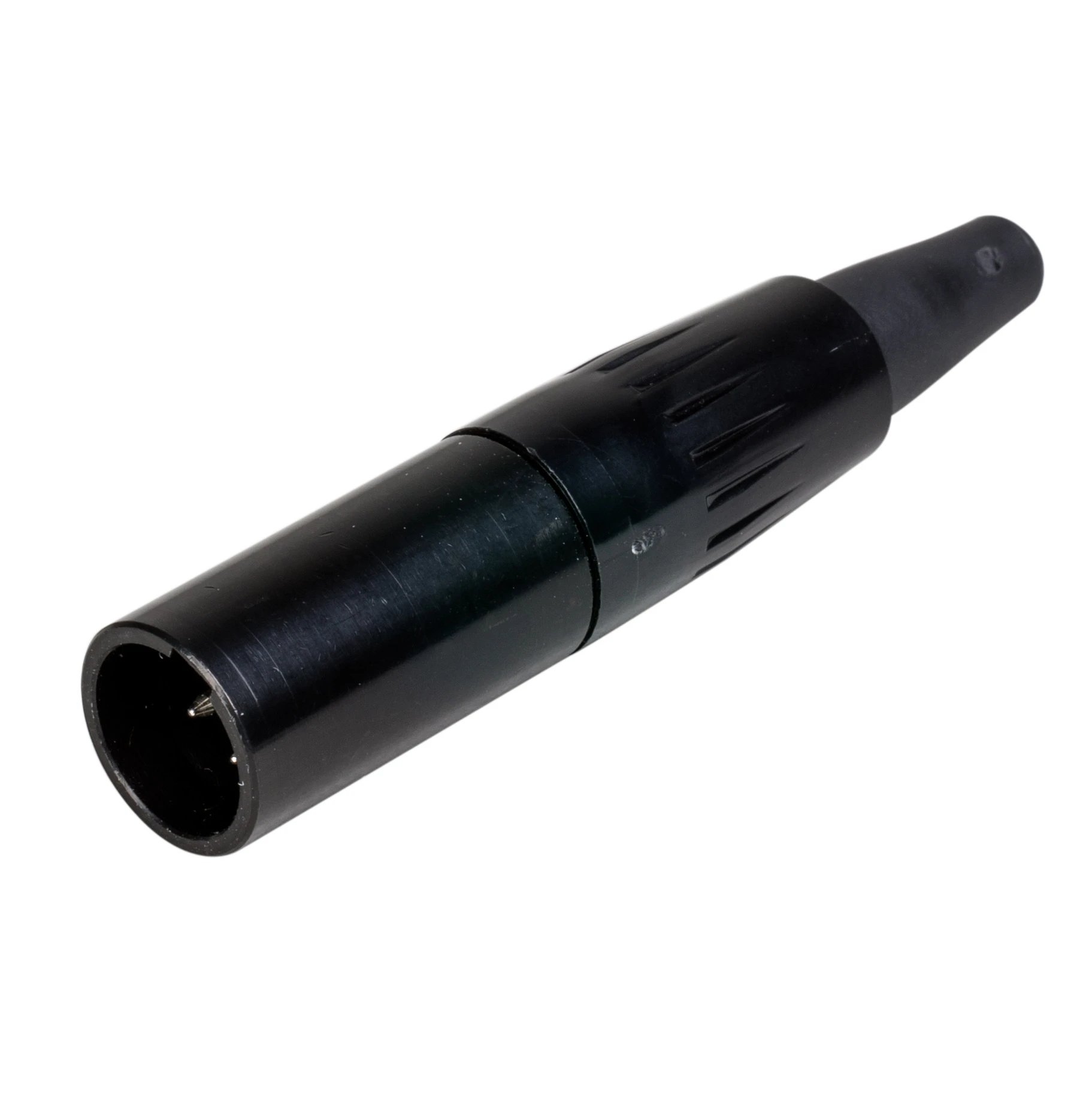

The Switchcraft TA5MBX is a Tini-QG “Mini XLR” 5 pin male cable mount connector with silver pins – in black.
-
Specifications:
- Electrical
- Contact Resistance: .010 ohms maximum after life (and after salt spray)
- Current Rating (Carry Only): 5 A, 125 V AC (4 A, 125 V AC on 5 circuit) based on 30°C maximum
- Insulation Resistance: 510,000 megohms minimum @ 500 VDC (initial); 10,000 megohms minimum (after humidity test)
- Dielectric Strength: 1,000 V (rms)
Mechanical
- Life: 5,000 operations minimum
- Insertion/Withdrawal Forces (after life): 6.1 lb./2.77 kg after life, insertion; 5.6 lb/2.54 kg, withdrawal
- Solderability Standard: Meets EIA RS-186-9E
- Mechanical Shock: Meets MIL-STD-202, method 213B
- Vibration: Meets MIL-STD-202, method 201A
- Wire Size: #22 wire gauge solid; #24 wire gauge stranded
Environmental
- Thermal Range: -55°C to + 85°C
- Humidity: Meets MIL-STD-202, method 106D
- Thermal Shock: Meets MIL-STD-202, method 107D
- Salt Spray: Meets MlL-STD-202, method 101
Material
- Housing, Plugs and Male Receptacles: Copper alloy, nickel-plated. Female Receptacle-Die-cast zinc, nickel-plated
- Black Tini Q-Gr Housing: Copper alloy, black chrome-plated
- Pin and Socket Contacts: Copper alloy, silver-plated
- Flex Relief: Molded black thermoplastic elastomer
- Latch Button: Molded black thermoplastic
- Release Lever and Mounting Washer: Steel, nickel-plated
- Standoff/Ground Terminal and Cable Clamp: Steel, electrotinned
- Inserts and Insulating Spacer: Molded, high strength thermoplastic
- Latch (Female): Copper alloy, nickel-plated
- Mounting Nut: Copper alloy, nickel-plated
