Switchcraft TA3MLBX Mini XLR Male Connector With Large Cable Opening – Black

Original price was: $12.06.Current price is: $8.44.

SKU: BWFYA 24443482 Categories: Audio Connectors, XLR Connectors

Experience the difference quality makes.
Top Quality Products
Service with a smile, always online.
fast shipping

Description
Reviews (0)

TA3MLBX – Overview

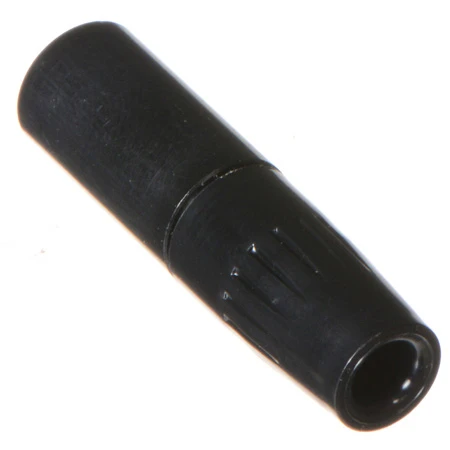

Tini-QG “Mini XLR” 3 Pin Male Cable Mount with Large Cable Opening (No Rubber Boot), Silver Pins, Black. (Image for reference only)

Specifications:
- ELECTRICAL.
- Contact Resistance: .010 ohms maximum after life (and after salt spray).
- Current Rating (Carry Only): 5 A, 125 V AC (4 A, 125 V AC on 5 circuit) based on 30°C maximum.
- Insulation Resistance: 510,000 megohms minimum @ 500 VDC (initial); 10,000 megohms minimum (after humidity test).
- Dielectric Strength: 1,000 V (rms).
  MECHANICAL.
- Life: 5,000 operations minimum.
- Insertion/Withdrawal Forces (after life): 6.1 lb./2.77 kg after life, insertion; 5.6 lb/2.54 kg, withdrawal.
- Solderability Standard: Meets EIA RS-186-9E.
- Mechanical Shock: Meets MIL-STD-202, method 213B.
- Vibration: Meets MIL-STD-202, method 201A.
- Wire Size: #22 wire gauge solid; #24 wire gauge stranded.
  ENVIRONMENTAL
- Thermal Range: -55°C to + 85°C.
- Humidity: Meets MIL-STD-202, method 106D.
- Thermal Shock: Meets MIL-STD-202, method 107D.
- Salt Spray: Meets MlL-STD-202, method 101.
  MATERIAL
- Housing, Plugs and Male Receptacles: Copper alloy, nickel-plated. Female Receptacle-Die-cast zinc, nickel-plated.
- Black Tini Q-Gr Housing: Copper alloy, black chrome-plated.
- Pin and Socket Contacts: Copper alloy, silver-plated.
- Flex Relief: Molded black thermoplastic elastomer.
- Latch Button: Molded black thermoplastic.
- Release Lever and Mounting Washer: Steel, nickel-plated.
- Standoff/Ground Terminal and Cable Clamp: Steel, electrotinned.
- Inserts and Insulating Spacer: Molded, high strength thermoplastic
- Latch (Female): Copper alloy, nickel-plated.
- Mounting Nut: Copper alloy, nickel-plated.
