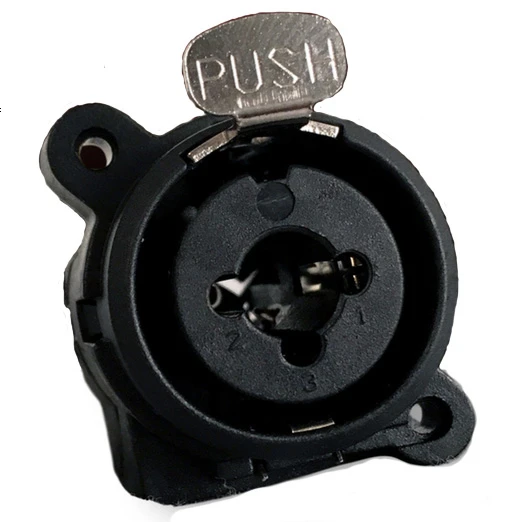

Switchcraft PXC 1/4 Inch XLR Combo Jack Connector With Solder Lugs

Switchcraft PXC 1/4 Inch XLR Combo Jack Connector With Solder Lugs - Image 2

Switchcraft PXC 1/4 Inch XLR Combo Jack Connector With Solder Lugs

Original price was: $12.96.Current price is: $9.07.

SKU: BWFYA 19673256 Categories: 14" Connectors Jacks & Plugs, Audio Connectors

Experience the difference quality makes.
Top Quality Products
Service with a smile, always online.
fast shipping

PXC – Overview

The PXC jacks from Switchcraft combine two of the most common audio connectors into a standard “D size” package, making it an excellent space saving option for any compact electronic design. A variety of mounting options are available for maximum flexibility, including solder and PC contacts.

A stereo 1/4″ [6.35mm] jack and a female XLR are combined into the same package, with separate contacts for each. Three part numbers are available for design flexibility: vertical PCB mount, horizontal PCB mount, and solder contacts.

These jacks feature gold plated contacts, a silver plated ground spring, and a rugged thermoplastic housing.

Features:
- Two-in-one design
- Three mounting options
- Quality materials
Specifications:
- Contact Resistance:
- 1/4″ [6.35mm] Jack: 50 mΩ
- XLR Connector: 30 mΩ
  Dielectric Strength:
- 1/4″ [6.35mm] Jack: 0.5A, AC 500V
- XLR Connector: 0.5A, AC 500V
  Life:
- 1/4″ [6.35mm] Jack: 2,000 Cycles
- XLR Connector: 1,000 Cycles
- RoHS Compliant
  Physical Characteristics
- Operating Temperature: -30°C to 80°C
- Storage Temperature: -30°C to 80°C
- Current Rating: 7.5A (current carry only)
- Voltage Rating: 50V
