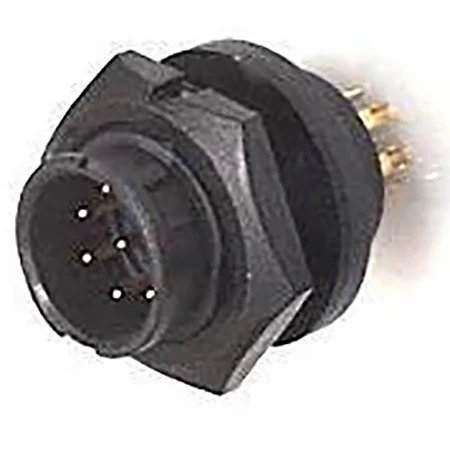

Switchcraft EN3P5MPX Standard Circular Connector EN3 5 PIN MALE PC PA

Original price was: $13.19.Current price is: $9.23.

SKU: BWFYA 27559881 Categories: Audio Connectors, Audio Patch Connectors

Experience the difference quality makes.
Top Quality Products
Service with a smile, always online.
fast shipping

Description
Reviews (0)

502-EN3P5MP – Overview

Utilizing an integral O-Ring/gasket, EN3L5MP EN3® connectors are available in 2-18 pins/sockets in the same housing size, bayonet locking, cable end, cable-to-cable, panel mount,right angle panel mount, solder, pc, crimp contacts, caps. Meets enclosure rating IP66/IP68 and NEMA 250 when mated or covered.

Features:
- Sealed to IP68 NEMA 250 (6P)
- Patented grommet & o-ring free design
- Available in ribbed or winged coupling ring
- Cable, panel & cable to cable options
- Gold plated contacts standard
- Solder, crimp & PC contact options
- Straight & right angle PC contact panel connectors
Specifications:
- Mechanical
- Life: Minimum 600 insertion / withdrawal cycles
- Vibration: Mil-Std 202 Method 201
- Shock: Mil-Std 202 Method 213B, condition K
- Hex Nut Torque: All series hex nut to withstand 8-10 in-lb tightening torque.
- Coupling Locking Style: Bayonet with ribbed coupling nut (winged coupling nut optional)
- Back Shell Style: Boot
  Electrical & Environmental
- Voltage Rating: 250 V AC/DC
- Insulation Resistance: 100 MΩ min
- Contact Resistance: 20 mΩ max
- Operating Temperature Rating: -40°C to +65°C (-40°F to +149°F)
- Moisture Resistance: Mil-Std 202 Method 106F
- Insulation Resistance: Mil-Std 202 Method 302 condition B
- Thermal Shock: Mil-Std 202 Method 107G
- Salt Atmosphere (Corrosion): Mil-Std 202 Method 101D condition B
  Material
- Panel connector shells & locking disk: Thermoplastic UL94V-0
- Connector shell interior: Elastomeric, Black UL 94HB
- Contacts: Copper Alloy, Gold over Nickel Plate
