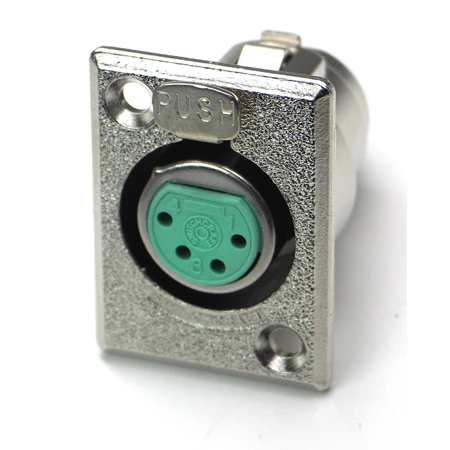

Switchcraft D4F 4-Pin Female XLR Panel/Chassis Mount Connector

Original price was: $13.03.Current price is: $9.12.

SKU: BWFYA 25957200 Categories: Audio Connectors, XLR Connectors

Experience the difference quality makes.
Top Quality Products
Service with a smile, always online.
fast shipping

D4F – Overview

Switcraft D4F female receptacle for panel or chassis mounting. Flange has two .136″ (3.45 mm) diameter countersunk holes for #5-40 flat head mounting screws (not supplied). Mounts from front of panel or chassis in .953″ (24.21 mm) diameter hole. Series D(*)F has standard latchlock; Series D(*)FD has FAS-DISCONNECT detent. Satin nickel finish (Series D*F and D*FD) and “Black-Velvet” finish (Series D*FBAU).

Features:
- Sturdy, die-cast zinc construction with satin nickel or Black Velvet finish to withstand hard use – even abuse
  High impact, molded thermoplastic insert insulation delivers high dielectric strength and superior insulation resistance
  Latchlock on female plugs & chassis mounts prevent accidental disconnect
Specifications:
- Contact Resistance: 50 milliohm maximum, per pole.
- Current Rating: 3 pole – 15A, 4 pole – 10A, 5 and 6 pole – 7.5A, 7 pole – 5A @ 125VAC.
- Insulation Resistance: 1,000 MO, minimum.
- Dielectric Withstanding Voltage: 1,000 V (rms).
- Capacitance: 2 pF between pins and 4 pF between pins and shell, maximum (AA3M and AA3F).
- Shell: Die-cast zinc. Satin nickel finish, black velvet.
- Insert Insulation: Molded thermoplastic.
- Socket Contacts: Silver-plated copper alloy tarnish-resistant; bifurcated on 3-contact type. Gold is available.
- Pin Contacts: Silver-plated copper alloy. Resists tarnishing, and provides excellent electrical conductivity. Gold is available.
- Latchlock: High-strength die-cast zinc.
- Latch Release: Steel, nickel-plated.
- Latch Detent: Formed stainless steel.
- Insert Screw: Stainless steel.
- Flex Relief: TPR (thermoplastic rubber).
GTIN:

0637963207148
