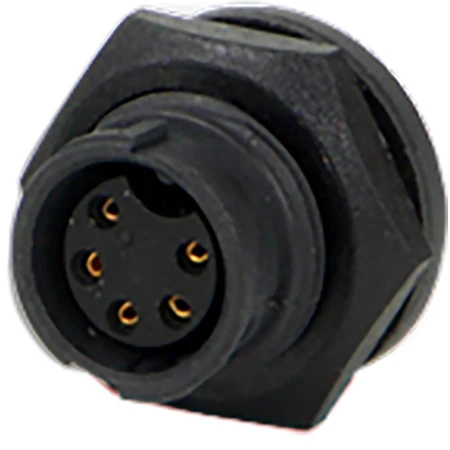

Switchcraft 5-pin Female Panel Mount EN3 Connector

Original price was: $18.09.Current price is: $12.66.

SKU: BWFYA 81761887 Categories: Audio Connectors, Audio Patch Connectors

Experience the difference quality makes.
Top Quality Products
Service with a smile, always online.
fast shipping

Description
Reviews (0)

EN3P5FX – Overview

Utilizing an integral O-Ring/gasket, EN3 connectors are available in 2 thru18 pins/sockets in the same housing size, bayonet locking, cable end, cable-to-cable, panel mount,right angle panel mount, solder, pc, crimp contacts, caps. Meets enclosure rating IP66/IP68 and NEMA 250 when mated or covered. Some of the many applications include:

Any sealed data transmission
Military or industrial GPS location devices
Instrumentation
Medical data carts
Marine Applications
Transportation
General industrial electronic applications

Specifications:
- Materials
- Panel connector shells and contact locking disk: Thermoplastic polymer glass fiber, flame retardant
- Connector shell interior: Thermoplastic rubber
- Contacts: Copper base alloy gold-plated over nickel underplate
  Mechanical
- Shock: Mil-Std 202 Method 213B, condition K
- Vibration: Mil-Std 202 Method 201
- Life: 600 insertion/withdrawal cycles (minimum)
  Electrical
- Voltage Rating (sea level): Tested at 600 VRMS (2-8 contacts), 250VRMS (9-18 contacts)
- Insulation Resistance: 100 megohms (minimum) at 77° F
- Contact Resistance: 20 milliohms (maximum)
- Current Rating-
- 13.0A (#16 contact)
- 7.5A (#20 contact, 2-6 contacts)
- 6.5A (#20 contact, 7 or 8 contacts)
- 3.0 Amps (#26 contact)
  Environmental
- Temperature Limits: -40°C to +65°C
- Moisture Resistance: Mil-Std 202 Method 106F
- Insulation Resistance: Mil-Std 202 Method 302 condition B
- Thermal Shock: Mil-Std 202 Method 107G
- Salt Spray: Mil-Std 202 Method 101D condition B
  Ratings
- IP16/IP18
- IP66/IP68
- NEMA 250 (6P)
- CFR 46 Part 110.20
