35LJNS – Overview

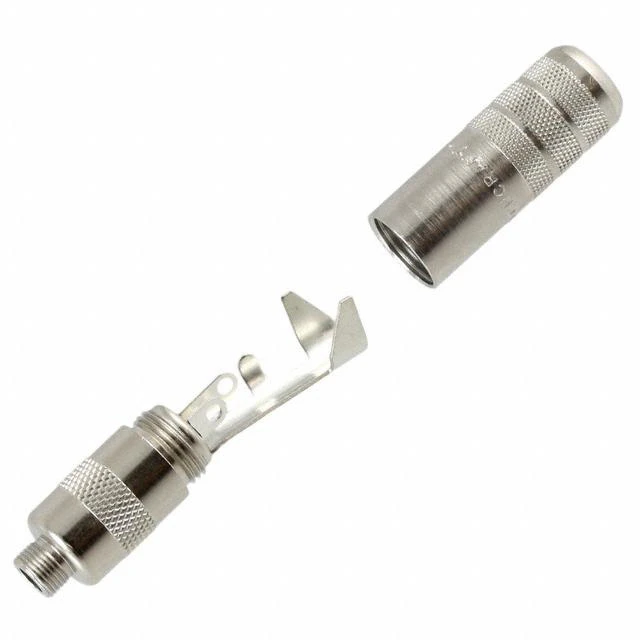

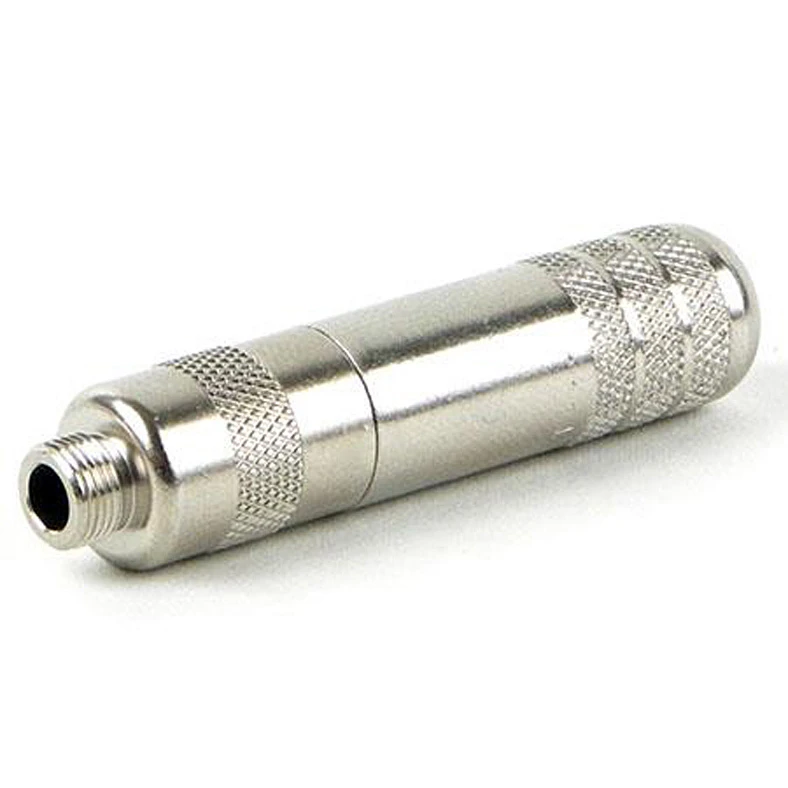

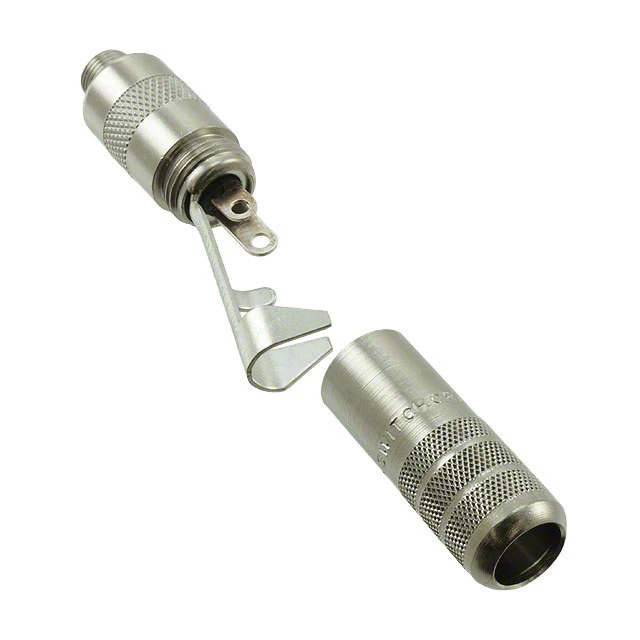

The Switchcraft 35LJNS is a 3.5MM Stereo Cable Mount Extension Jack and has a Nickel Body with Silver Contacts and .175″ Opening. Solid metal housing. construction and a two piece design simplifies termination. Switchcraft connectors have undergone rated to 5000 insertion/withdrawal cycles. Mates with 35HD series locking or non-locking plugs
-
Features:
- Solid metal housing.
- Available with gold or silver contacts.
- Two piece design simplifies termination
- Rated to 5000 insertion/ withdrawal cycles
- Mates with 35HD series locking or non-locking plugs
-
Specifications:
- Electrical Specifications
- Contact Resistance: 0.020 ohms
- Insulation Resistance : 2000 megohms
- Dielectric Withstand Voltage: 250VAC
Mechanical Specifications - Insertion Force: 8 lbs MAX
- Withdrawal Force: 1lbs MIN
- Life Cycles: 5,000 insertion/ withdrawal cycles
- Max Soldering Temp/Time: 800°F/10s or 700°F/20s
- Vibration per MIL-STD-202F Method 201
- Thermal Shock per MIL-STD-202F Method 107G
Material Specifications - Sleeve: Copper alloy, nickel
- Handle: Copper alloy, nickel
- Cable Clamp: C.R.S., tin-plated
- Solder Terminal: Copper alloy, silver or gold plated
- Insulator: Thermoplastic, black
