Switchcraft 35HDLBN 3.5MM Locking Stereo Plug Black Handle Nickel Plug – 0.290 Inch Cable Opening
Original price was: $17.08.$11.96Current price is: $11.96.
- Experience the difference quality makes.
- Top Quality Products
- Service with a smile, always online.
- fast shipping
35HDLBN – Overview

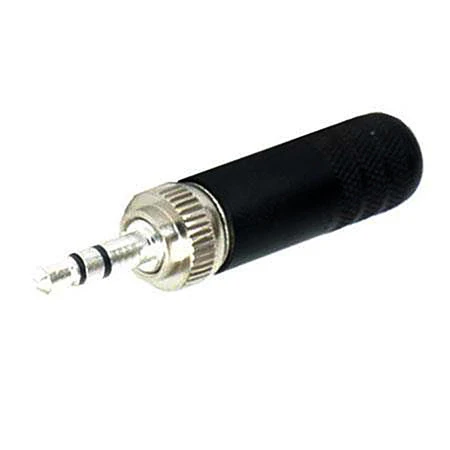

Switchcrafts 35HDLBN is a 3.5MM (1/8″ mini) Locking Stereo Plug with black handle, tin plug, and 0.290″ cable opening that mates with the 35RAPC series.
-
Specifications:
- Contact Resistance: 20 MilliOhms Max.
- Dielectric Withstanding Voltage: 250 VAC Min.
- Insulation Resistance @ 500 VDC: 2,000 MegaOhms Min.
- Max. Working Voltage: 250 VAC; 140VDC
- Current Carry @ Working Voltage: 4 Amps
- Insertion/Withdrawal Force: Typical 2.5/2 Lbs.
- Temperature Range: -20°C to 85°C (operating)
- Thermal Shock: MIL-STD-202, Method 107G
- Vibration: MIL-STD-202, Method 201
- Life: 5,000 Cycles
- Cable Size: .290 Dia. Max.
