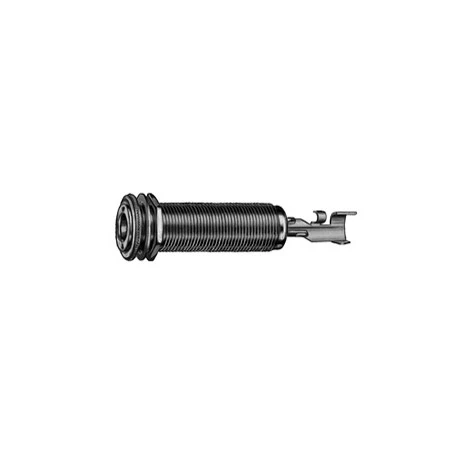

Switchcraft 152B 3 Conductor Double Open Circuit 1/4in Jack Nickel

Original price was: $13.81.Current price is: $9.67.

SKU: BWFYA 79810217 Categories: 14" Connectors Jacks & Plugs, Audio Connectors

Experience the difference quality makes.
Top Quality Products
Service with a smile, always online.
fast shipping

Description
Reviews (0)

152B – Overview

Thick Panel Phone Jacks are standard 2- and 3-conductor phone jacks with extra long threaded bushing for mounting in panels/chassis up to 1.25 inches thick. Metal bushing virtually eliminates hum pick-up, and is ideal for electric guitar and speaker connections. Jacks mate with standard commercial phone plugs. See plug section for mating plugs. Jacks mount in a single .469 inch diameter hole. Rugged cable clamp protects connections from twisting and pulling stresses.

Features:
- Mounting Bushing: Nickel-plated copper alloy with knurled flange.
- Insulating Spacer: Rigid plastic.
- Insulator/Spring Mount: Thermoplastic.
- Springs: Copper alloy.
- Terminals: Tip: Copper alloy.
- Ring: (Number 152B only) copper alloy.
- Sleeve: Steel, tin-plated.
- Hardware: Supplied with one, Number P10531 nickel-plated, copper alloy hex nut, and one, Number P1476 nickel-plated copper alloy flat washer.
