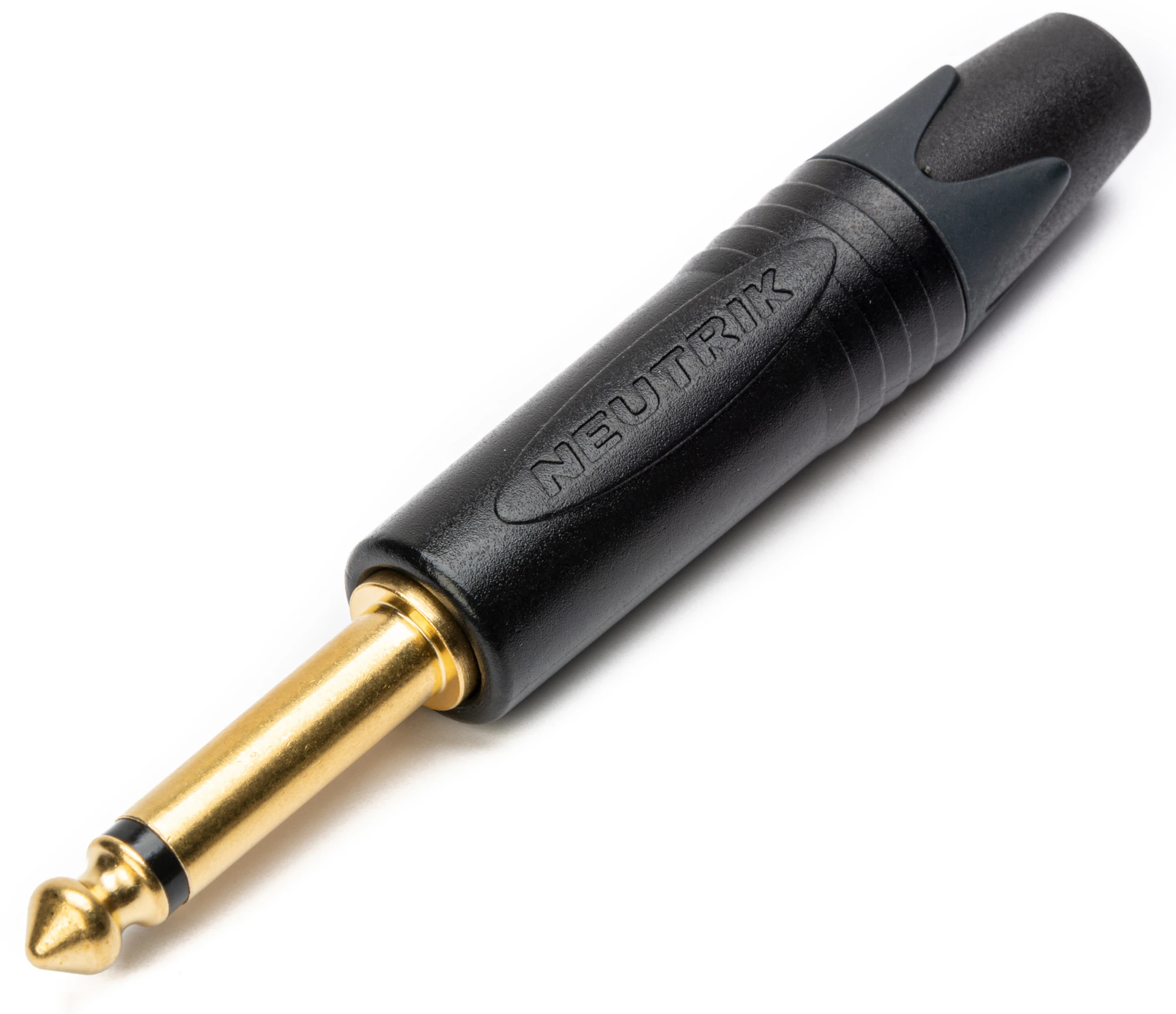

Neutrik NP2X-B X-Series 1/4in Phone Plug W/Gold Contacts & Black Shell - 100 Pack

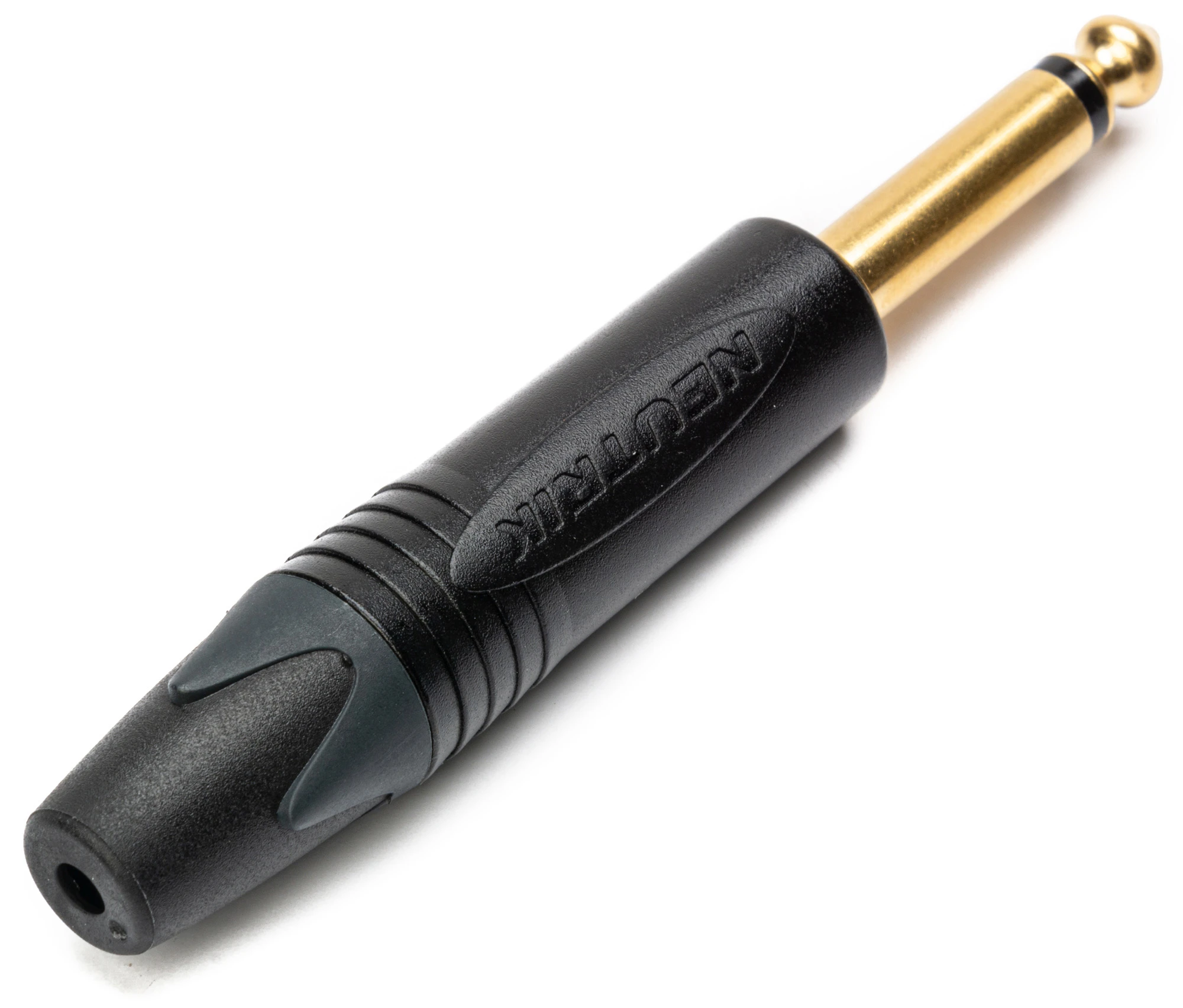

Neutrik NP2X-B X-Series 1/4in Phone Plug W/Gold Contacts & Black Shell - 100 Pack - Image 2

Neutrik NP2X-B X-Series 1/4in Phone Plug W/Gold Contacts & Black Shell – 100 Pack

Original price was: $395.00.Current price is: $98.99.

SKU: BWFYA 95226434 Categories: 14" Connectors Jacks & Plugs, Audio Connectors

Experience the difference quality makes.
Top Quality Products
Service with a smile, always online.
fast shipping

Description
Reviews (0)

NP2X-B-D – Overview

2 Pole 1/4″ Professional Phone Plug, Gold Contacts, Black Shell
Neutrik NP2X-B heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4″ plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88mm jack pitch).

The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip.

The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.

Features:
- Extra slim 1/4″ plug for highest packing density
- Robust diecast shell in stylish design
- Proven chuck type strain relief for reliable cable retention
- Sleek design for best handling convenience
- Precision machined one-piece contacts – avoid hook up of tip contact
Specifications:
- Electrical
- Contact Resistance: Depends on mating connector mΩ
- Dielectric Strength: 1 kVdc
- Insulation Resistance: > 2 GΩ (initial)
- Rated Current Per Contact: Depends on mating connector A
- Rated Voltage: 50 V
  Mechanical
- Cable O.D.: 4 – 7 mm
- Lifetime: > 1000 mating cycles
- Wiresize: 1 mm²
- Wiresize: 18 AWG
- Wiring: Solder contacts
  Material
- Bushing: Polyacetal (POM) + PU
- Contact Plating: 0.2 µm Au
- Contacts: Brass (CuZn39Pb3)
- Insert: Polyamide (PA 6.6 30 % GR)
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell Plating: Black chromium
- Strain Relief: Polyacetal (POM)
  Environmental
- Standard Compliance: IEC 60603-11 / EIA RS-453
- Solderability: Complies with IEC 68-2-20
- Temperature Range: -20 °C to +65 °C
Item Includes:
- 100x Neutrik X-Series 1/4in Phone Plug w/Gold Contacts & Black Shell
