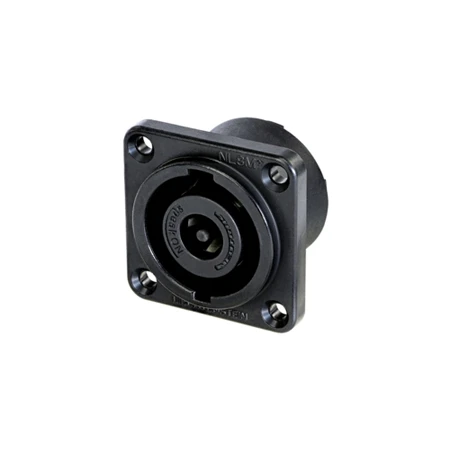

Neutrik NL8MPRXX-BAG 8 Pole Male Chassis Connector – Black Metal Square G-size Housing/Countersunk Thru Holes

Original price was: $14.79.Current price is: $10.35.

SKU: BWFYA 58200506 Categories: Audio Connectors, Speaker Connectors

Experience the difference quality makes.
Top Quality Products
Service with a smile, always online.
fast shipping

Description
Reviews (0)

NL8MPRXX-BAG – Overview

Neutrik NL8MPRXX-BAG 8 pole male chassis connector, black metal square G-size housing, countersunk thru holes, 3/16“ flat tabs

This connector is accepted within audio equipment designed according to IEC 62368-1 due to its component certification according to IEC 61984.

The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections and feature a unique metal locking system, making contact only once fully locked. The receptacles are robust, versatile and easy to terminate.

Attention: speakON is NOT to be used as an mains or power supply connector (AC / DC)!

Features:
- IEC 61984 certified, thus accepted as a component of equipment acc. to IEC 62368-1
- Current rating 30 A rms
- Extremely robust metal flange and glass reinforced V-0 material for harsh and demanding environment
- Precise keyway for secure mating
- Airtight design – optimized for speaker applications
Specifications:
- Gender: male
- Contact resistance: ≤ 2 mΩ
- Dielectric strength: 1.5 kVac
- Insulation resistance: > 0.1 GΩ (after dampheat)
- Rated current per contact: 30 A rms continuous (acc. to IEC 61984)
- Rated voltage: 250 V ac
- Attention: speakON is NOT to be used as an mains or power supply connector (AC / DC)!
- Lifetime: > 5000 mating cycles
- Termination: 3/16″ flat tabs
- Locking device: Quick Lock
- Mounting direction: Rear / front mounting
- Chassis shape: square G-size flange
- Layout: four thru holes
- Contact plating: Ag
- Contacts: Copper Alloy
- Shell: Zinc diecast, black chrome plated
- Insert: Polyamide (PA 6.6)
- Temperature range: -30 °C to +80 °C
- Flammability: UL 94 V-0
Item Includes:
- 1x Neutrik NL8MPRXX-BAG 8 Pole Male Chassis Connector – Black Metal Square G-size Housing/Countersunk Thru Holes
