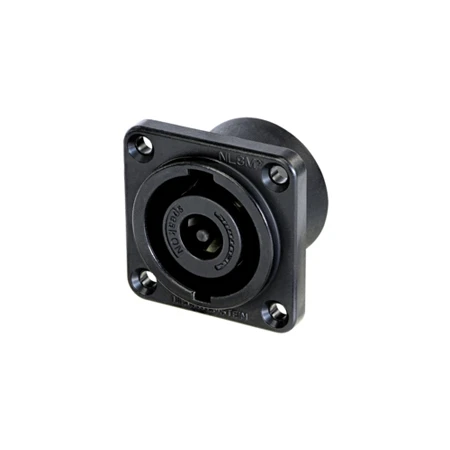

Neutrik NL8MDXX-V-BAG 8 Pole Male Chassis Connector – Black Metal Square G-size Housing/Countersunk Thru Holes

NL8MDXX-V-BAG – Overview

• Features:

  • IEC 61984 certified, thus accepted as a component of equipment acc. to IEC 62368-1
  • Current rating 25 A rms
  • Extremely robust metal flange and glass reinforced V-0 material for harsh and demanding environment
  • Precise keyway for secure mating
  • Airtight design – optimized for speaker applications


• Specifications:

  • Gender: male
  • Contact resistance: ≤ 2 mΩ
  • Dielectric strength: 1.5 kVac
  • Insulation resistance: > 0.1 GΩ (after dampheat)
  • Rated current per contact: 25 A rms continuous (acc. to IEC 61984)
  • Rated voltage: 250 V ac
  • Attention: speakON is NOT to be used as an mains or power supply connector (AC / DC)!
  • Lifetime: > 5000 mating cycles
  • Termination: vertical PCB mount
  • Locking device: Quick Lock
  • Mounting direction: Rear mounting
  • Chassis shape: square G-size flange
  • Layout: four thru holes
  • Contact plating: Ag
  • Contacts: Copper Alloy
  • Shell: Zinc diecast, black chrome plated
  • Insert: Polyamide (PA 6.6)
  • Temperature range: -30 °C to +80 °C
  • Flammability: UL 94 V-0
  • Solderability: Complies with IEC 68-2-20


• Item Includes:

  • 1x Neutrik NL8MDXX-V-BAG 8 Pole Male Chassis Connector – Black Metal Square G-size Housing/Countersunk Thru Holes
