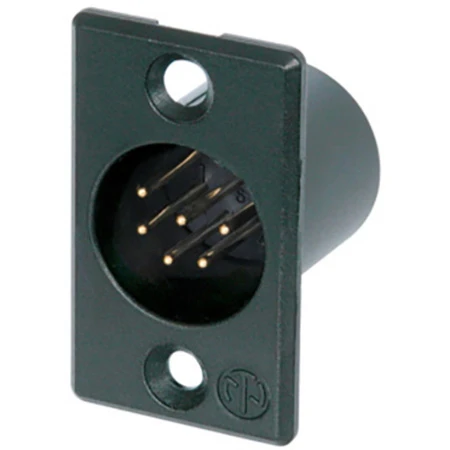

Neutrik NC6MP-B (same As NC6MP) W/Black Metal Housing & Gold Contacts

NC6MP-B – Overview

• Features:

  • Male and female available in 3-6 pin configurations; 7 pin versions available in female only.
  • Smallest available hard wiring receptacles with large solder cups.
  • Male and female use different mounting hole dimensions and do not fit in same mounting hole.
  • Front mountable only.
  • One piece version – insert is NOT removable from shell.
  • Short female receptacle.
  • Compatible with Switchcraft DxM, DxF; Cannon XLRx31, XLRx32.
  • 6 pole version available with Switchcraft contact arrangement.


• Specifications:

  • Electrical
  • Number of Contacts: 3-7 (6**)
  • Contact Resistance: ≤5GΩ
  • Insulation Resistance: Initial: >2GΩ, After damp heat test: >1GΩ
  • Dielectric Strength: 1500 V DC
  • Rated Voltage: 50 V AC
  • Rated Current per Contact: 4 Pole: 10A, 5,6 Pole: 7.5A, 7 Pole: 5A, Combo XLR + Jack Contacts: 7.5A
  • Capacitance between Contacts: = 4pF

    Mechanical

  • Lifetime > 1,000 insertion / withdrawal cycles
  • Insertion/Withdrawal Fore: ≥ 20 Newtons (N)
  • Retention Method: Standard: Latch Lock
  • Termination Type: Solder Terminals, PC Board Mount

    Materials

  • Shell: Zinc Diecast
  • Insert: Polyamide PA 6.6 30% GR
  • Ring: Zinc Diecast

    Environmental

  • Operating Temperature: -30°C to +80°C
  • Flammability: UL 94 HB, UL 94 V-0
  • Protection Class: IP 40


• Item Includes:

  • 1x NC6MP-B Connector
