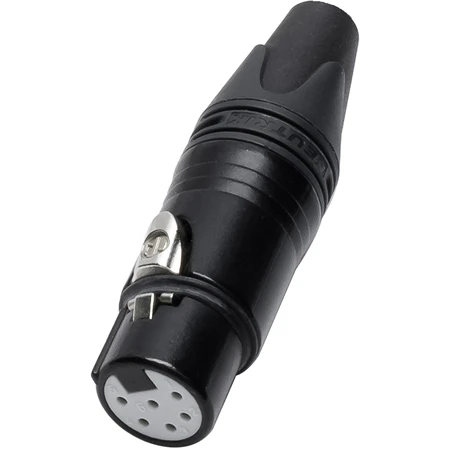

Neutrik NC6FSXX-B 6 Pole Female Cable Connector With Switchcraft Pin Layout – Black Metal Housing And Gold Contacts

NC6FSXX-B – Overview

• Features:

  • Unique cage design of female contact for low contact resistance and high integrity
  • Female contact incorporates a solder barrier to prevent solder running into the contact mating area
  • Female connector with improved solid metal latch which is larger and easier to handle
  • Additional ground spring contacts for better shell ground continuity
  • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
  • Boot with polyurethane gland gives high protection to cable bending stresses
  • Colored rings and boots available for coding or identification
  • Sleek and ergonomic design – valuable and handy
  • Rugged zinc diecast shell, longlasting and dependable
  • Internal thread on shell is well protected against any damage
  • Branded with unique hologram – guarantees genuine and authentic Neutrik product


• Specifications:

  • Electrical
  • Connection Type: XLR
  • Gender: Female
  • Capacitance between contacts: ≤7 pF
  • Contact resistance: ≤3 mΩ
  • Dielectric strength: 1,5 kVdc
  • Insulation resistance: > 10 GΩ (initial)
  • Rated current per contact: 7,5 A
  • Rated voltage: 50 V

    Mechanical

  • Cable O.D.: 3.5 – 8.0 mm
  • Insertion force: ≤ 20 N
  • Withdrawal force: ≤ 20 N
  • Lifetime: > 1000 mating cycles
  • Wiresize: max. 1.0 mm²
  • Wiresize: max. 18 AWG
  • Wiring: Solder contacts
  • Locking device: Latch lock

    Material

  • Boot: Polyurethan
  • Contact plating: 0.2 µm Au hard alloy over 2 µm Ni
  • Contacts: Brass (CuZn39Pb3)
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Locking element: Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell plating: Black chromium
  • Strain relief: Polyacetal (POM)

    Environmental

  • Flammability: UL 94 HB
  • Standard compliance: IEC 61076-2-103
  • Protection class: IP 40
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30 °C to +80 °C
