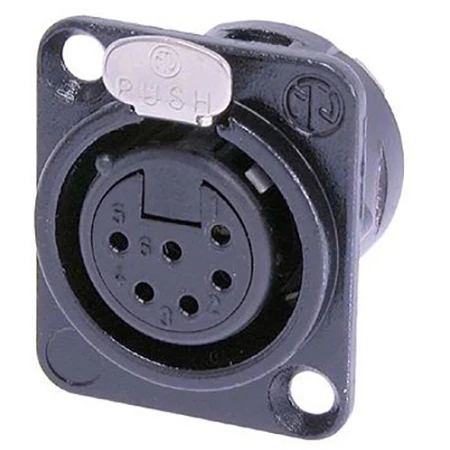

Neutrik NC6FSD-L-B-1 6-Pole Pin Female XLR Solder Cups – Black Metal Housing/Gold Contacts

Original price was: $15.34.Current price is: $10.74.

SKU: BWFYA 81821667 Categories: Audio Connectors, XLR Connectors

Experience the difference quality makes.
Top Quality Products
Service with a smile, always online.
fast shipping

Description
Reviews (0)

NC6FSD-L-B-1 – Overview

Neutrik NC6FSD-L-B-1 6 pole female receptacle, solder cups, black metal housing, gold contacts

Universal D-size metal body XLR panel mount series. UL recognized component.

Features:
- Robust “D” metal shell
- Standardized D sized 24 mm panel cutout
- Solder cups on 3 – 7 pole version
Specifications:
- Capacitance Between Contacts: = 7 pF
- Contact Resistance: = 5 mΩ
- Dielectric Strength: 1,5 kVdc
- Insulation Resistance: > 10 GΩ (initial)
- Rated Current Per Contact: 7,5 A
- Rated Voltage: 50 V
- Insertion Force: = 20 N
- Withdrawal Force: = 20 N
- Lifetime: > 1000 mating cycles
- Wiresize: max. 1.0 mm²
- Wiresize: max. 18 AWG
- Wiring: Solder contacts
- Locking Device: Latch lock
- Chassis Shape: D:
- Contact Plating: 0.2 µm Au hard alloy over 2 µm Ni
- Contacts: Brass (CuZn39Pb3)
- Insert: Polyamide (PA 6.6 30 % GR)
- Locking Element: Steel Ck67
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell Plating: Black chromium
- Approvals: UL
- Flammability: UL 94 HB
- Standard Compliance: IEC 61076-2-103
- Protection Class: IP 40
- Solderability: Complies with IEC 68-2-20
- Temperature Range: -30 °C to +80 °C
Item Includes:
- 1x Neutrik NC6FSD-L-B-1 6S Pin Female XLR Solder Cups – Black/Gold
