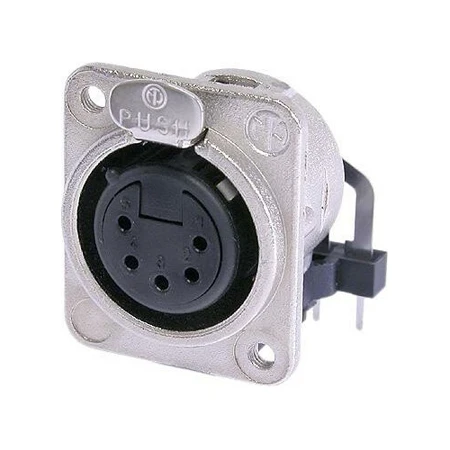

Neutrik NC5FDM3-H 5 Pole Female Horizontal PCB Mount Receptacle W/M3 Mounting Holes – Nickel Housing/Silver Contacts

NC5FDM3-H – Overview

• Features:

  • Robust “D” metal shell
  • Standardized D sized 24 mm panel cutout
  • PCB mount termination


• Specifications:

  • Product
  • Title: NC5FDM3-H
  • Connection Type: XLR
  • Gender: female
  • Electrical
  • Capacitance between contacts: = 7 pF
  • Contact resistance: = 5 mO
  • Dielectric strength: 1,5 kVdc
  • Insulation resistance: > 10 GO (initial)
  • Rated current per contact: 7,5 A
  • Rated voltage: 50 V
  • Mechanical
  • Insertion force: = 20 N
  • Withdrawal force: = 20 N
  • Lifetime: > 1000 mating cycles
  • Wiring: Horizontal PCB mount
  • Locking device: Latch lock
  • Mounting direction: Rear mounting
  • Chassis shape: D
  • Mounting: Mounting holes with M3 threads

  • Material
  • Contact plating: 2 æm Ag over 2 æm Ni
  • Contacts: Brass (CuZn39Pb3)
  • Insert: Polyamide (PA66)
  • Locking element: Steel Ck67
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell plating: Nickel
  • Environmental
  • Approvals: UL
  • Flammability: UL 94 V-0
  • Standard compliance: IEC 61076-2-103
  • Protection class: IP 40
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30 °C to +80 °C


• Item Includes:

  • 1x Neutrik NC5FDM3-H receptacle – sold each


• GTIN:

  0657248700126
