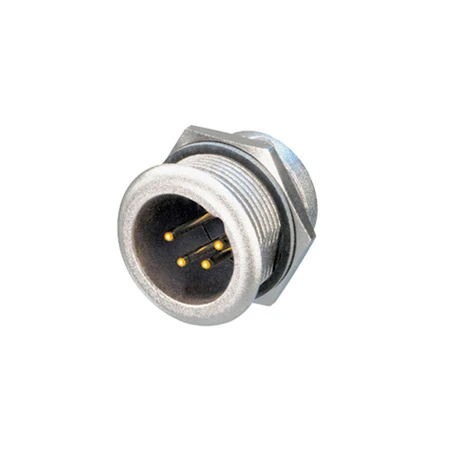

Neutrik NC4MPR-HD Male 4-Pole XLR Chassis Connector For Outdoor Use

Original price was: $14.93.Current price is: $10.45.

SKU: BWFYA 21785236 Categories: Audio Connectors, XLR Connectors

Experience the difference quality makes.
Top Quality Products
Service with a smile, always online.
fast shipping

Description
Reviews (0)

NC4MPR-HD – Overview

Neutrik NC4MPR-HD is a heavy duty sealed male 4-pole XLR chassis connector for outdoor use. Dust and water ingress sealing to IP65 rating is achieved by using HD cable connector (NC4FX-HD).

These chassis connectors can be used perfectly for outdoor and weatherproof applications as well as in a wide range of industrial applications.

Features:
- IP 65 – in combination with NC4FX-HD cable connector
- Perfect for outdoor applications
- Sealing gasket for water tight panel mount
- Gold plated contacts
- Fastening nut included
Specifications:
- Electrical
- Capacitance between contacts: ≤ 7 pF
- Contact resistance: ≤ 5 mΩ
- Dielectric strength: 1,5 kVdc
- Insulation resistance: > 10 GΩ (initial)
- Rated current per contact: 10 A
- Rated voltage: 50 V
  Mechanical
- Insertion force: ≤ 20 N
- Withdrawal force: ≤ 20 N
- Lifetime: > 1000 mating cycles
- Wiresize: max. 1.5 mm²
- Wiresize: max. 16 AWG
- Wiring: Solder contacts
- Locking device: Latch lock
- Mounting direction: Front mounting
- Chassis shape: P
  Material
- Contact plating: 0.2 µm Au over 2 µm Ni
- Contacts: Brass (CuZn39Pb3)
- Insert: Polyamide (PA 6.6 30 % GR)
- Locking element: Steel Ck67
- Gasket: Tesnit®
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell plating: Nickel
  Environmental
- Flammability: UL 94 HB
- Standard compliance: IEC 61076-2-103
- Protection class: IP 65
- Solderability: Complies with IEC 68-2-20
- Temperature range: -30 °C to +80 °C
