Neutrik NC4FDM3-H 4-Pin XLR Female Horizontal PCB M3 Mount Connector – Black/Silver

Original price was: $14.89.Current price is: $10.42.

SKU: BWFYA 53311848 Categories: Audio Connectors, XLR Connectors

Experience the difference quality makes.
Top Quality Products
Service with a smile, always online.
fast shipping

Description
Reviews (0)

NC4FDM3-H-BAG – Overview

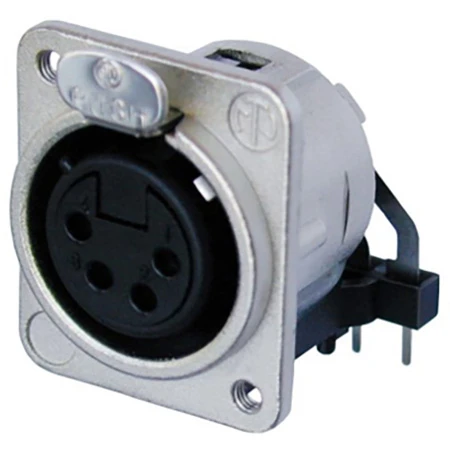

The Neutrik NC4FDM3-H-BAG is a 4 pole XLR female receptacle with a horizontal PCB mount, black metal housing, silver contacts and M3 mounting holes. It’s part of the Universal D-size metal body XLR panel mount series and is a UL recognized component.

Features:
- Robust “D” metal shell
- PCB mount termination
- Standardized D sized 24 mm panel cutout
Specifications:
- Connection Type: XLR
- Gender: female
- Capacitance between contacts: greater/less than 7 pF
- Contact resistance: greater/less than 5 mOhm
- Dielectric strength: 1,5 kVdc
- Rated current per contact: 10 A Rated voltage 50 V Insertion force 20 N Withdrawal force 20 N Lifetime > 1000 mating cycles
- Mount: Horizontal PCB mount
- Locking device: Latch lock
- Mounting direction: Rear
- Mounting Chassis: shape D
- Mounting holes: M3 threads
- Contact plating: 2 µm Ag over 2 µm Ni
- Contacts: Brass (CuZn39Pb3)
- Insert: Polyamide (PA 6.6 30 % GR)
- Locking element: Steel Ck67
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell plating: Black chromium
- Approvals: UL Flammability UL 94 HB
- Standard compliance: IEC 61076-2-103
- Protection class: IP 40
- Solderability: Complies with IEC 68-2-20
- Temperature range: -30 °C to +80 °C
