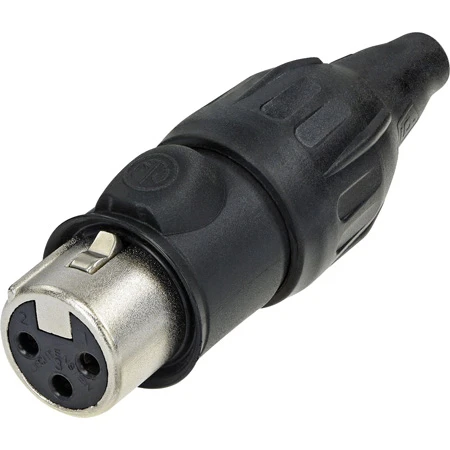

NC3FX-TOP – Overview
3 Pole Female Cable Connector, True Outdoor Protection (TOP), Gold Contacts
Neutrik NC3FX-TOP X-TOP series is a “heavy-duty” XLR cable connector for outdoor use. IP65 rating and certified outdoor protection to UL 50E by mating with related cable or chassis connector of the XLR TOP range.
-
Features:
- Heavy-duty sealed XLR connector range.
- Outdoor protection acc. IP65 and UL50E.
- Maintain sealing when in use and when
- disconnected.
- Uses high impact UV resistant materials per UL.
- Gold plated contacts.
- Optional dust protection cap.
-
Specifications:
- Electrical
- Capacitance Between Contacts: = 4 pF
- Contact Resistance: = 3 mΩ
- Dielectric Strength: 1,5 kVdc
- Insulation Resistance: > 10 GΩ (initial)
- Rated Current Per Contact: 8.3 A
- Rated Voltage: 50 V
Mechanical
- Cable O.D.: 5.0 – 8.0 mm
- Insertion Force: = 20 N
- Withdrawal Force: = 20 N
- Lifetime: > 5000 mating cycles
- Wiresize: max. 1.5 mm²
- Wiresize: max. 16 AWG
- Wiring: Solder contacts
- Locking Device: Latch lock
Material
- Bushing: UV-resistant rubber
- Contact Plating: 0.2 æm Au hard alloy over 2 æm Ni
- Contacts: Bronze (CuSn8)
- Insert: Polyamide (PA 6.6 30 % GR)
- Locking Element: St3K32 (latch) / Ck 67 (spring)
- Shell: Zinc diecast (ZnAI4Cu1)
- Shell Plating: Nickel
- Strain Relief: Polyacetal (POM)
- Sealing Jacket: UV-resistant rubber
Environmental
- Approvals: UL
- Flammability: UL 94 HB
- Standard Compliance: IEC 61076-2-103
- Protection Class: IP65, UL50E enclosure type 4 (mated)
- Solderability: Complies with IEC 68-2-20
- Temperature Range: -30 °C to +80 °C
-
GTIN:
7613187011948
