NC10MD-LX-B – Overview

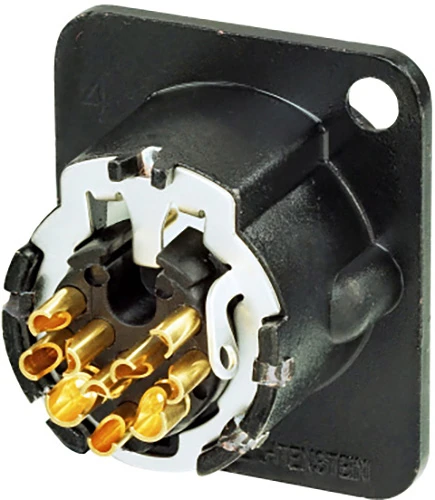

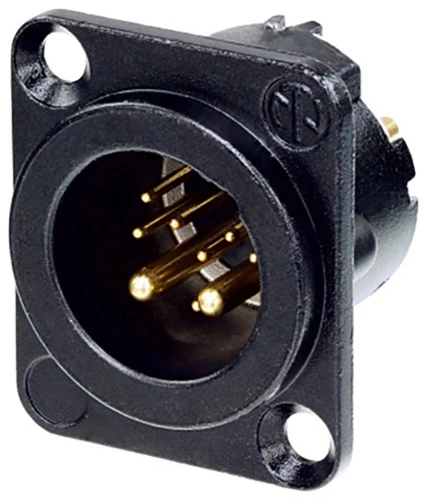

Neutrik’s NC10MD-LX-B is a 10 pole male D-size receptacle, with black chrome metal housing and duplex ground contact. Easy to assemble 10 pole XLR connectors with secure locking and proven Neutrik chuck type strain relief.
-
Features:
- Suitable for data offering CAT 5e performance and power up to 16 A and 50 V – exceeds PoE+ capabilities
- Superior ruggedness compared to RJ45 type connectors
- All metal housing offers best overall RF protection and electromagnetic shielding
- D-size housing provides installation compatibility with industry standard D mounting dimensions
- Receptacle with duplex ground contact for excellent signal integrity
-
Specifications:
- Type: Chassis
- Connection Type: XLR
- Gender: Male
Electrical
- Contact resistance: ≤ 3 mΩ
- Dielectric strength: 1 kVdc (initial), 0.1 GΩ (after damp heat test)
- Insulation resistance: > 10 GΩ
- Number of electronical contacts: 8 + 2
- Rated current per contact: 16 A (power pins), 3 A (data pins)
- Transmission performance: CAT 5e
Mechanical
- Insertion force: ≤ 20 N
- Withdrawal force: ≤ 20 N
- Lifetime: > 1000 mating cycles
- Wiresize: 2.5 mm² / AWG 14 (power pins), 1 mm² / AWG 18 (data pins)
Material
- Contact plating: 0.2 µm Au hard alloy over 2 µm Ni
- Contacts: Brass (CuZn39Pb3)
- Insert: Polyamide (PA 6.6 30 % GR)
- Locking element: Steel Ck67
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell plating: Black chromium
Environmental
- Flammability: UL 94 HB
- Protection class: IP 40
- Solderability: Complies with IEC 68-2-20
- Temperature range: -30°C to +80°C
- Manufacturing Standard: IEC 61076-2-103
