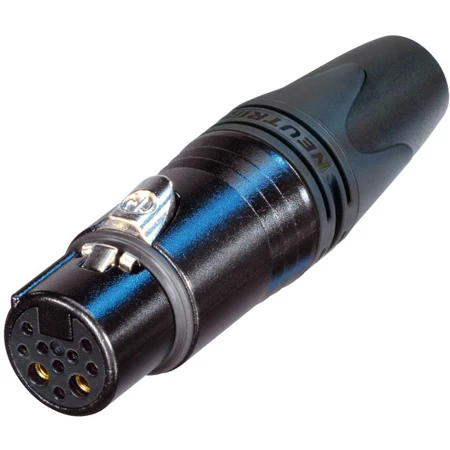

Neutrik NC10FXX-14-B XX Series 10-Pin Cable End – Female – Black/Gold

NC10FXX-14-B – Overview

• Features:

  • Suitable for data offering CAT 5e performance and power up to 16 A and 50 V – exceeds PoE+ capabilities
  • Superior ruggedness compared to RJ45 type connectors
  • All metal housing offers best overall RF protection and electromagnetic shielding


• Specifications:

  • Product
  • Connection Type: XLR
  • Gender: Female

    Electrical

  • Contact resistance: ≤3 mω
  • Dielectric strength: 1 kVdc
  • Insulation resistance: > 10 Gω , 0.1 (after damp heat test)
  • Number of electronical contacts: 8 + 2
  • Rated current per contact: 16 A (power pins), 3 A (data pins)
  • Cable shield – shell connection: choosable
  • Transmission performance: CAT 5e

    Mechanical

  • Cable O.D.: 8.0 – 10.0 mm
  • Insertion force: ≤ 20 N
  • Withdrawal force: ≤ 20 N
  • Lifetime: > 1000 mating cycles
  • Wiresize: 2.5 mm² / AWG 14 (power pins), 1 mm² / AWG 18 (data pins)

    Material

  • Bushing: PA / PU
  • Contact plating: 0.2 µm Au hard alloy over 2 µm Ni
  • Contacts: Brass (CuZn39Pb3)
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Locking element: Zinc diecast (ZnAl4Cu1)
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell plating: Black chromium
  • Strain relief: POM

    Environmental

  • Flammability: UL 94 HB
  • Protection class: IP 40
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30 °C to +80 °C
  • Manufacturing Standard: IEC 61076-2-103
