Sale!

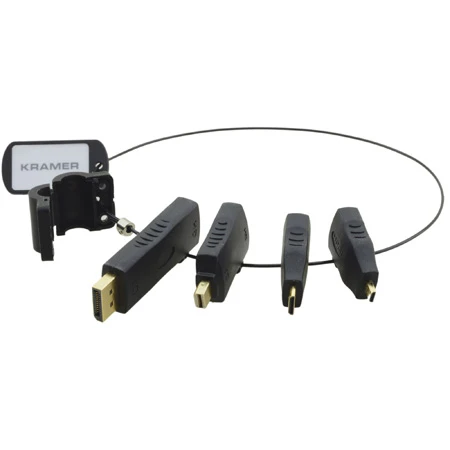

Kramer AD-RING-2 HDMI Adapter Ring

Original price was: $132.80.Current price is: $92.96.

SKU: BWFYA 47516770 Categories: HDMI Adapters, Video Adapters

Experience the difference quality makes.
Top Quality Products
Service with a smile, always online.
fast shipping

AD-RING-2 – Overview

HDMI Adapter Ring

Kramer’s AD-RING is a stainless-steel ring of HDMI adapters that attaches to your display cable so you can plug different presentation sources into the HDMI cable*. Laptops, tablets, smart phones, digital cameras, and net books have a variety of connectors for displaying their content. AD-RING provides the presenter easy access to the appropriate adapter for connection to the HDMI infrastructure. This simple and effective solution supports mobile device content and keeps the adapters secure and in place for the next presenter.

The Kramer AD-RING-2 Adapts: DisplayPort (Male) to HDMI (Female); Mini DisplayPort (Male) to HDMI (Female); Mini HDMI type-C (Male) to HDMI (Female); Micro HDMI type-D (Male) to HDMI (Female)

*Note: HDMI cable sold separately.

Features:
- Secure your adapters with the cable clamp and security loop
- Supported Resolutions – AD-RING-1, AD-RING-2, AD-RING-3 (Up to 1080p and 1920×1200) / AD-RING-4, AD-RING-5 (Up to 4K @60Hz(4:2:0) / AD-RING-6 (Up to 4K @60Hz(4:2:0) / AD-RING-7; USB-C (Up to 4K @60Hz(4:2:0) / MDP: Up to 4K @60Hz(4:4:4) / DP: Up to 1080p, AD-RING-8 USB-C: (Up to 4K @60Hz(4:2:0) / MDP: Up to 1080p/1920×1200
- Fits HDMI cables from 0.12in to 0.35in / 3mm to 9mm in diameter.
- Included Accessories: 1 ABS cable clamp, 2 sets of foam rubber inserts, 4 sets of Torx T10 screws and nuts
- HDMI cable sold separately
- For easy installation or modifying AD-RING adapters please see ACCESSORIES & RELATED PRODUCTS
Specifications:
- Inputs
- DisplayPort Male: Complies with DisplayPort 1.1 up to 2.7 Gbps
- Mini DisplayPort Male: Complies with DisplayPort 1.1 up to 2.7 Gbps
- Mini HDMI Type-C Male: Complies with HDMI up to 2.25 Gbps
- Micro HDMI Type-D Male: Complies with HDMI up to 2.25 Gbps
  Outputs
- HDMI type-A Female: Complies with HDMI up to 2.25 Gbps
  Video
- Max. Resolution: (AD-RING-1, AD-RING-2, AD-RING-3) Up to 1080p and 1920×1200
- Max. Resolution: (AD-RING-4, AD-RING-5) Up to 4K@60 (4:2:0)
- Max. Resolution: (AD-RING-6) Up to 4K@60Hz (4:2:0)
- Max. Resolution: (AD-RING-7) USB-C; Up to 4K60 (4:2:0) MDP – Up to 4K60 (4:4:4) DP – Up to 1080p
- MAX. RESOLUTION: (AD-RING-8) USB-C; Up to 4K60 (4:2:0) MDP – Up to 1080p/1920×1200
  Construction
- Security Cable Material: Steel with black polyethylene sheath
- Security Cable Length: 17.72in / 450 mm
- Cable Clamp Dimensions (closed): 0.67in x 0.94in x 1.04in / 17mm x 24mm x 26.5mm
- Cable Clamp Inner Diameter: 0.35in / 9mm
- Cable Clamp Material: Black ABS plastic
- Medium Size Insert Diameter: 0.24in / 6mm
- Small Insert Diameter: 0.16in / 4mm
- Insert Material: Foam rubber
Item Includes:
- 1 AD-RING-2
- 1 ABS cable clamp
- 2 sets of foam rubber inserts
- 4 sets of Torx T10 screws and nuts
GTIN:

7291063082741
