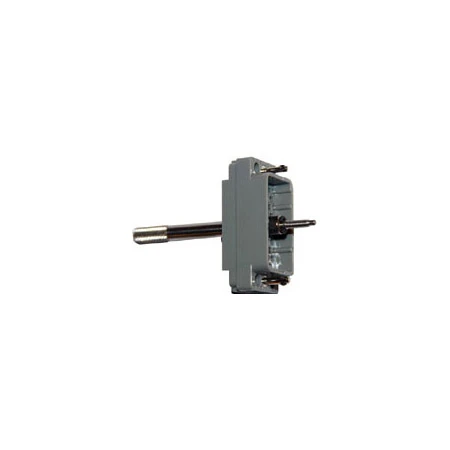

EDAC / ELCO 516-038-000-301 38-Pin Male Plug With Actuating Screw

516-038-000-301 – Overview

• Features:

  • .150″ (3.81mm) Contact Spacing x .130″ (3.30mm) or .150″ (3.81mm) Row Spacing with staggered Grid
  • Plug and Receptacle in 20, 38, 56, 90 and 120 Contact Sizes
  • Edacon Hermaphroditic Contact Mating Design
  • Contact Termination Options include Crimp, P.C. Tail, Wire Hole and Wire Wrap
  • Mating and Unmating Simplified with use of Actuating Screws
  • Optional Covers with Side or Top Entry Cable Clamp in Plastic or Metal material Available for all Connector Sizes
  • Versatile Metal Cover Design permits Assembly or Disassembly After Cabling is Complete plus Cable Entry Style Flexibility
  • Actuating Screws, Locknuts, Polarizing Hardware, Covers and Contacts Suitable for either Plug or Receptacle
  • Polarizing Hardware Adjustable for 288 Mating Combinations
  • Tools Available for Contact Installation, Removal and Crimping and Polarizing Changes
  • RoHS Compliant & UL Recognized


• Specifications:

  • Insulator Material: Diallyl Phthalate, Thermoplastic Polyester or Polycarbonate UL 94V- 0
  • Color: Green, or Polycarbonate Color Grey
  • Contact Material: Copper Alloy
  • Contact Plating: Gold Plating over Nickel over entire contact
  • Current Rating: 8.5 Amperes
  • Contact Resistance: 10 milliohms maximum
  • Withstanding Voltage: 2000 VAC rms at sea level
  • Insulation Resistance: 5000 Megohms minimum
  • Operating Temp: -40°F – 257°F (-40°C – 125°C)(Diallyl Phthalate Only)
  • Operating Temp: -40°F – 221°F (-40°C – 105°C)
  • Insertion & Withdrawal Force: 2 to 16 Oz (0.56 to 4.45N) per contact position
