38Pin EDAC / ELCO Receptacle With Actuating Screw

516-038-000-401 – Overview

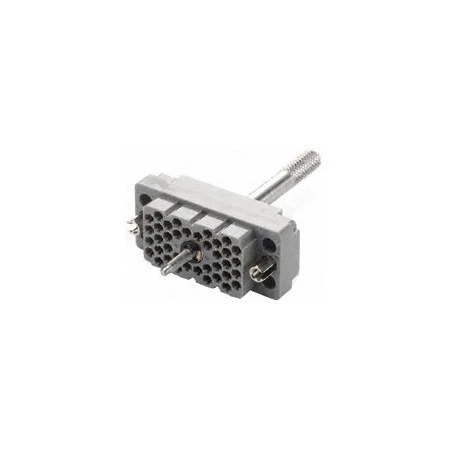

38Pin EDAC / ELCO Receptacle with Actuating Screw

• Features:

  • 0.150″ (3.81mm) contact spacing x 0.130″ (3.30mm) or 0.150″ (3.81mm) row spacing with staggered grid
  • Plug and receptacle in 20, 38, 56, 90 and 120 contact sizes
  • Edacon hermaphroditic contact mating design
  • Contact termination options include crimp, P.C. tail, wire hole and wire wrap
  • Mating and unmating simplified with use of actuating screws
  • Optional covers with side or top entry cable clamp in plastic or metal material available for all connector sizes
  • Versatile metal cover design permits assembly or disassembly after cabling is complete plus cable entry style flexibility
  • Actuating screws, locknuts, polarizing hardware, covers and contacts suitable for either plug or receptacle
  • Polarizing hardware adjustable for 288 mating combinations
  • Tools available for contact installation, removal, crimping and polarizing changes
  • RoHS Compliant & UL Certified


• Specifications:

  • Insulator Material Diallyl Phthalate, Thermoplastic Polyester or Polycarbonate UL 94V- 0
  • Color Green or Grey (For 120 Pin Only)
  • Contact Material Copper Alloy
  • Contact Plating Gold Plating over Nickel over entire contact
  • Current Rating 8.5 amps
  • Contact Resistance 10 milliohms maximum
  • Dielectric Withstanding Voltage 2000 V AC rms at sea level
  • Insulation Resistance 5000 megaohms minimum
  • Operating Temperature -40°C to +125°C (Diallyl Phthalate Only)
  • Operating Temperature -40°C to +105°C
  • Insertion & Withdrawal Force 2 to 16 oz (0.56 to 4.45N) per contact position


• Item Includes:

  • 38Pin EDAC / ELCO Receptacle with Actuating Screw
